• STRUCTURE
Land survey - Soil test investigation - Earth quake resistant – Fe 550 TMT bar –solid concrete
block/ wire cut Red brick walls – OPC 53 for RCC and PPC 43 grade cement for other works.
Gypsum board false ceiling for Living/ dining and all Bed rooms.
Basement height 2’.6”.
• FLOORING
Vitrified tiles from Kajaria/ Somany/ Equivalent, 6’ x 4’ for living and dining (Rs.120 per sft)
and 4’ X 2’ for bedrooms and kitchen (Rs.80 per sft). Exterior vitrified tiles for car park and
interlocking Paver blocks for setback areas. Special waterproofing to be done terrace floor.
• TOILET AND UTILITY
Kajaria/Somany/Equivalent tiles 24”x12” Rs.65 per sft for Toilets, Kitchen, For Utility walls
24" x 12" - Rs 60 per sft and Anti skid/ matt 12”x12”tile Rs.50 for floor. Epoxy grouting for
tiles, with waterproofing (Sunken areas) in Utility and Toilets. Toilet ceiling finished with 24" x
24" grid false ceiling.
• SANITARY AND PLUMBING
CPVC for concealed line, and UPVC open pipeline for fresh water and PVC pipeline for sanitary
and Kitchen of Finolex/Equivalent.
Wall mounted closet with concealed tank of Jaquar/Parryware/Equivalent.
Taps and fittings will be CP of make Jaquar/Parryware/Equivalent
• KITCHEN
Black galaxy granite for counter and Stainless steel sink with drain board of Niralli/Equivalent.
Provision for RO Unit & Dish washer.
• ELECTRICAL
Chemical earthing – M.S. fabricated powder coated Panel Board, Independent DB with circuit
Breakers and RCCB. FRLS cables from ORBIT/Q-Flex/Equivalent &- Legrand/Equivalent
Modular switches, with Adequate 5 amps and 15 amps points
• JOINERIES
DOORS
3’ 6"x 7’ First quality African teak, with 5”x3” for frame and 1 ½” thick planks for Main door
with Floral carving , 3’x 7' First quality African teak frames and Skin molded doors for
Bedrooms with both sides painted, , 2’.6” x 7' First quality African teak frames and ABS both
side painted doors for toilets. All Hardware will be Stainless steel..
• PAINTING
Internal walls will be two coats of cement based Putty, and two coats of premium Emulsion
with one coat of Primer of Asian/Equivalent
External surface will be Texture, Exterior primer and two coats of Apex grade emulsion of
Asian/Equivalent.
Main door will be polished with melamine spray.
• WINDOWS
UPVC sliding windows with 4 mm plain glass and 12mm x 12mm Bright bar gills embedded in
to the wall.
French door will be sliding with toughened glass.
2’ x 2’ UPVC fixed louver for ventilator with exhaust fan provision in toilets.

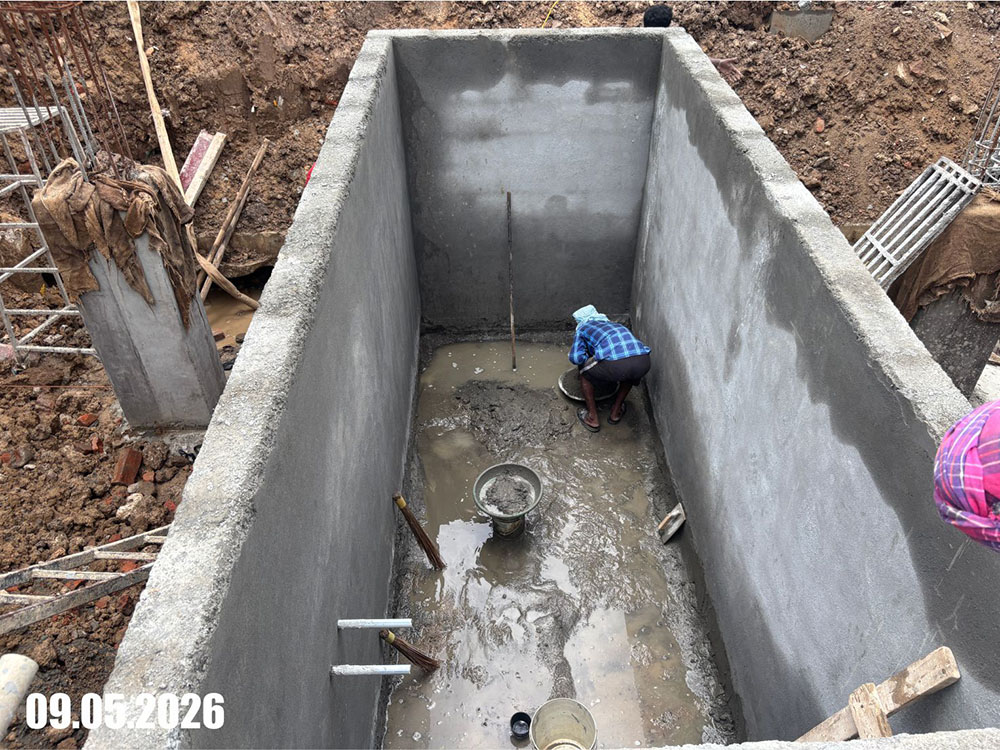

• OHT AND UG SUMP
4 ½” Outer brick wall and RCC inner wall with water proofing and bifurcation for Metro water
and bore water for OHT and Masonry RCC wall sump with necessary water proofing.
6” dia Bore well as per the water level in the area will be provided
• LIFT
6 (SIX) Passenger Auto door lift MS finish lift from EMPEROR/ Equivalent with 3 years of AMC
will be provided.
• GENERATER
Generator will be provided to support Lift, Common lights, Pumps and Only Light & fan points
to the inside the flat.
• PEST CONTROL
Anti termite pest control treatment will be done at footing, around plinth beam, Brickwork
and paving block laying stages.
• Common Ammonites
• 8 Unit CCTV
• Access control system with wooden door & glass paneled door
• Piped gas with cylinder storage room
• SS Staircase railing - Balcony hand rail with SS & toughened glass
• Rain water harvest
• Separate Servant Room & Toilet in GF
• Landscape
• Seating arrangement at terrace and car park
• Granite for steps and Landing in Common staircase
• Compound wall 5' ht with necessary gate provision at front side
• Name board
• Pressure booster pump
• Granite putty in window bottom jams
• Electrical vehicle charger in car park area
• Elegant elevation features.
