FIRM’S JANARDHAN

We facilitate bringing

Your dream of Luxury living now becomes a reality!

FIRM’S JANARDHAN

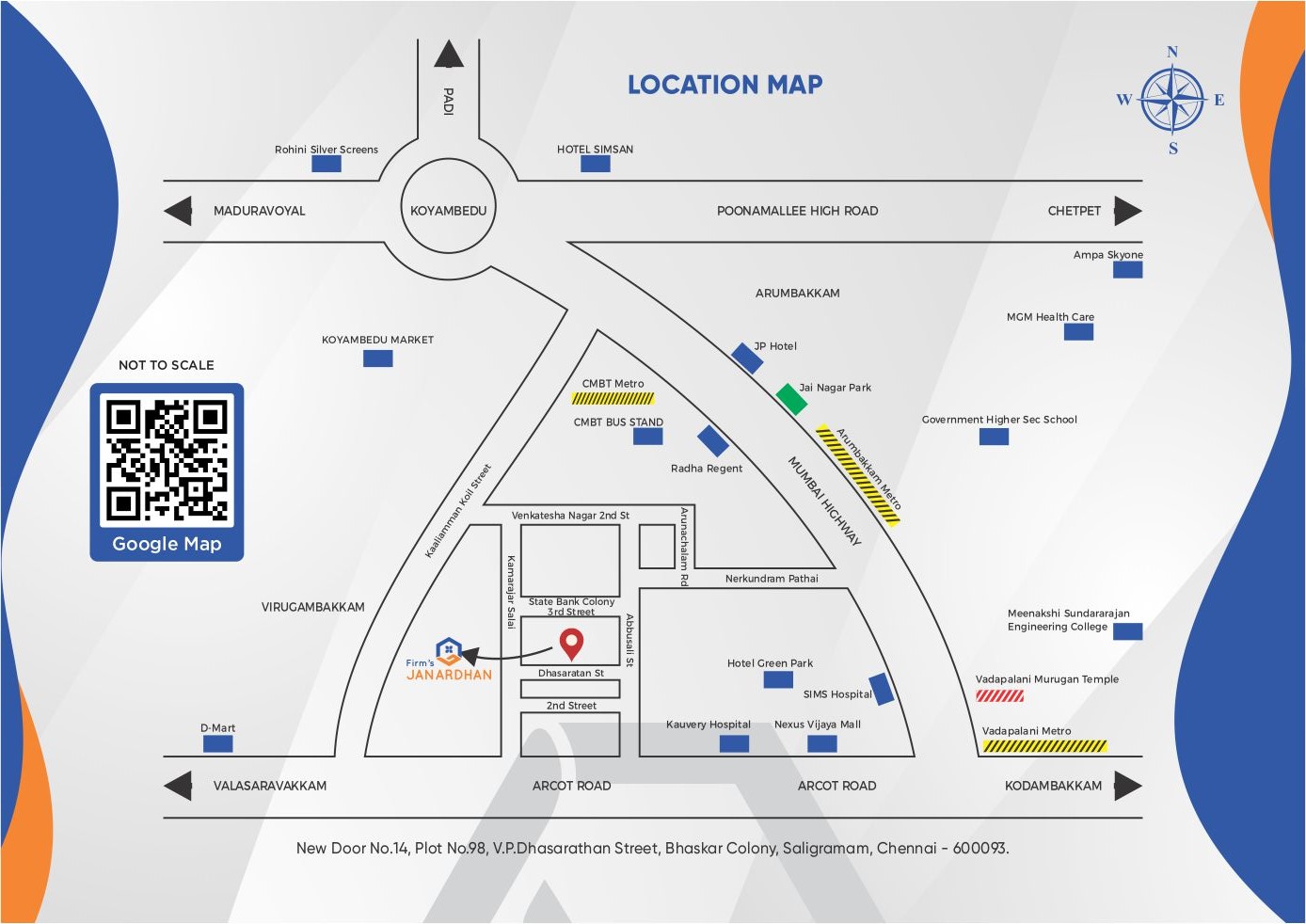

FIRM’S JANARDHAN is another property including construction of Stilt plus Three floors Premium Residential apartments with modern amenities. Location: New Door No.14, Plot No.98, V.P Dhasarathan Street, Bhaskar Colony, Saligramam , Chennai ­ 600093

1. STRUCTURE :

• Earth quake resistant – Fe 550 - D TMT bar – Red bricks & solid concrete block walls – ULTRA TECH RMC - OPC 53 for   RCC and PPC 43 grade cement for other works.Gypsum board false ceiling for Living dining and all Bed rooms.

• Basement height 2’- 6”.



2. FLOORING :

• Vitrified tiles from Kajaria/Somany/Equivalent (Double charged), Living Dinning 4’x2’

     (Rs.100) laminated wooden flooring for Master bed rooms (Rs 100), Bedrooms,  kitchen and Balconies 2’x2’ (Rs.50).

 • Exterior vitrified tiles for car park and 60mm thick interlocking Paver blocks for setback areas.

• Granite will be used in common staircase Heat resistant tiles for terrace of Insulla/equivalent.



3. TOILET AND UTILITY :

• Kajaria/Somany/Equivalent tiles 24”x12”/18”x12” for Toilets, Kitchen, Utility walls (Rs.50) and 12”x12” for floor( Rs.40).

• Epoxy grouting for floor tiles, with waterproofing (Sunken areas) in Utility and Toilets. A towel rod &12" glass corner soap tray for each toilet.



4. SANITARY AND PLUMBING

• CPVC pipe for concealed line, and UPVC open pipeline for fresh water and PVC pipe line for sanitary and Kitchen waste water.

• Wall mounted closet and Concealed tank of Jaquar/ Parryware /Equivalent. Taps and fittings will be CP Jaquar/equivalent.



5. KITCHEN :

• Black galaxy granite for counter and 36”X20” SS sink with drain board of Nirali/Equivalent.



6. ELECTRICAL :

• Chemical Earth – M.S. fabricated powder coated Panel Board, Independent DB with circuit Breakers and RCCB. FRLS cables of Havells/Orbit/RR/Q-Flex/Equivalent. Legrand/Equivalent Modular switches, with     Adequate 5 amps and 15 amps points. Exhaust fan for all toilets.



7. JOINERIES - DOORS  :

• 3’- 6” x 7' - 0" First quality African teak, with 5”x 3” for frame and 1 ½” thick planks for Main door shutter.

• 3’- 0” x 7' - 0" First quality African teak frames and Skin molded doors with melamine polish for Bedrooms.

• 2 -.6” x  7' - 0" First quality teak frames and ABS Kappa doors for toilets.

   All  Hardware will be SS.



8. PAINTING :

•    Internal walls will be two coats of cement based Putty, and two coats of premium Emulsion with one coat of Primer of Asian/Nippon/Equivalent

•   External surface will be Texture/putty, Exterior primer coat and two coats of Apex grade emulsion of Asian/Equivalent.



9. WINDOWS :

•  UPVC sliding for kitchen and open able for other windows with 5 mm plain glass and 12 mm Bright bar gills embedded in wall.

•  French door will be sliding shutters. Ventilators will be UPVC with fixed louver of size 2' x 2'and provision for exhaust fan.



10. OHT AND UG SUMP :

•   4 ½” Outer brick wall and RCC inner wall with water proofing for OHT (4000 Liters + 3000 liters), and 12,000 liters RCC sump with water proofing for UG sump.

• Bore well up to 50 ‘ depth will be provided.



11. LIFT :

• 6 Passenger Auto door MS lift  (V3F) with Auto rescue Device by EMPEROR/Equivalent



12 .GENERATOR :

• Standby Generator will be provided to support Lift, Common lights, Pumps, Lights, fan points and AC's inside the flat.



13. PEST CONTROL :

• Anti-termite pest control treatment will be done at footing, around plinth beam, Brickwork and paving block laying stages.



14. COMMON AMENITIES :

• Light points with light fitting in common area

• Stainless Steel railing in common staircase

• Compound wall

• Name Board

• Seating arrangements in car park & Terrace

• Party table at Terrace

• Rain water harvesting

• water pressure booster pump

• Elegant Lobby space in GF

• Separate Servant room & toilet in GF

• Elegant elevation

• Granite finish to staircase steps & window & balcony bottom jams.

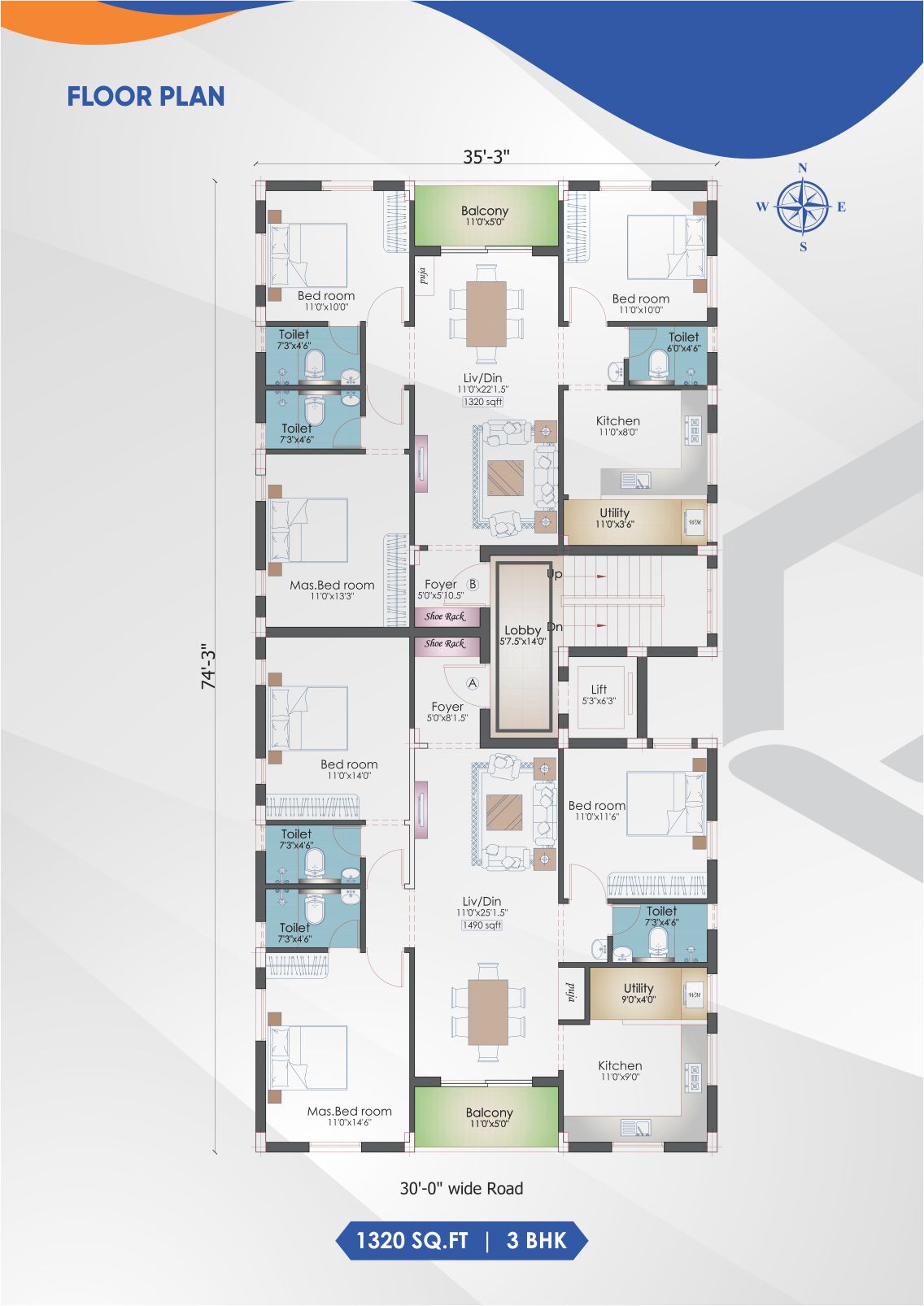

Floor Plan

https://www.firmfoundations.in/projects/floorplans/thumbnails/17622557772janadhran.jpg
Will Be Updated Soon...
FLOOR FLAT AREA ( IN SQ. FEET) AVAILABILITY
First Floor Flat 1A 1490
First Floor Flat 1B 1320
Second Floor Flat 2A 1490
Second Floor Flat 2B 1320
Third Floor Flat 3A 1490
Third Floor Flat 3B 1320
PAYMENT SCHEDULE
Will Be Updated Soon...
