STRUCTURE:

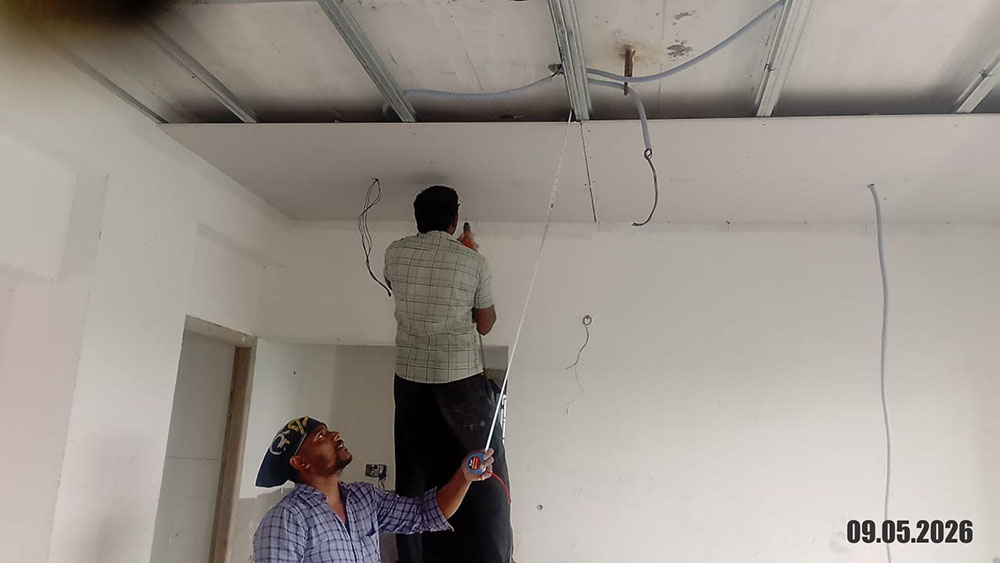

Earth quack resistant – Fe 550 TMT bar – Clay bricks/Fly ash Brick walls – OPC 53 for RCC and PPC 43 grade cement for other works. Gypsum board false ceiling for Living dining and all Bed rooms. Basement height 2'.6”.
FLOORING:
Vitrified tiles from Kajaria/Somany/Equivalent, Living Dinning 4' X 2' (Rs.100) Bedrooms, Kitchen and Balconies 2'x2' (Rs.50). Exterior vitrified tiles for car park and interlocking Paver blocks for setback areas. Heat resistant tiles for terrace of Insulla/equivalent.
TOILET AND UTILITY:
Kajaria/Somany/Equivalent tiles 24”x12”/18”x12” for Toilets, Kitchen, Utility walls (Rs.50) and 12”x12” for floor( Rs.40). Epoxy grouting for tiles, with waterproofing (Sunken areas) in Utility and Toilets.
SANITARY AND PLUMBING:
CPVC for concealed line, and UPVC open pipeline for fresh water and PVC pipeline for sanitary and Kitchen of Finolex/Equivalent. Wall mounted closet and Concealed tank of Jaquar/Toto/Equivalent. Taps and fittings will be CP Jaquar/equivalent.
KITCHEN:
Black galaxy granite for counter and 36”X20” SS sink with drain board of Nirali/Equivalent.
ELECTRICAL:
Chemical Earth – M.S. fabricated powder coated Panel Board, Independent DB with circuit Breakers and RCCB. FRLS cables of Orbit/RR/Q-Flex/Powerflex/Equivalent, Legrand/ Equivalent Modular switches, with Adequate 5 amps and 15 amps points. Exhaust fan for all toilets.
JOINERIES - DOORS:
3'- 6"x 7' First quality African teak, with 5”x3” for frame and 1 ½” thick planks for Main door
3' x 7' First quality African teak frames and Skin mould doors for Bedrooms. 2' 6"x 7' First quality African teak frames and ABS doors for toilets. All hardware will be SS.
PAINTING:

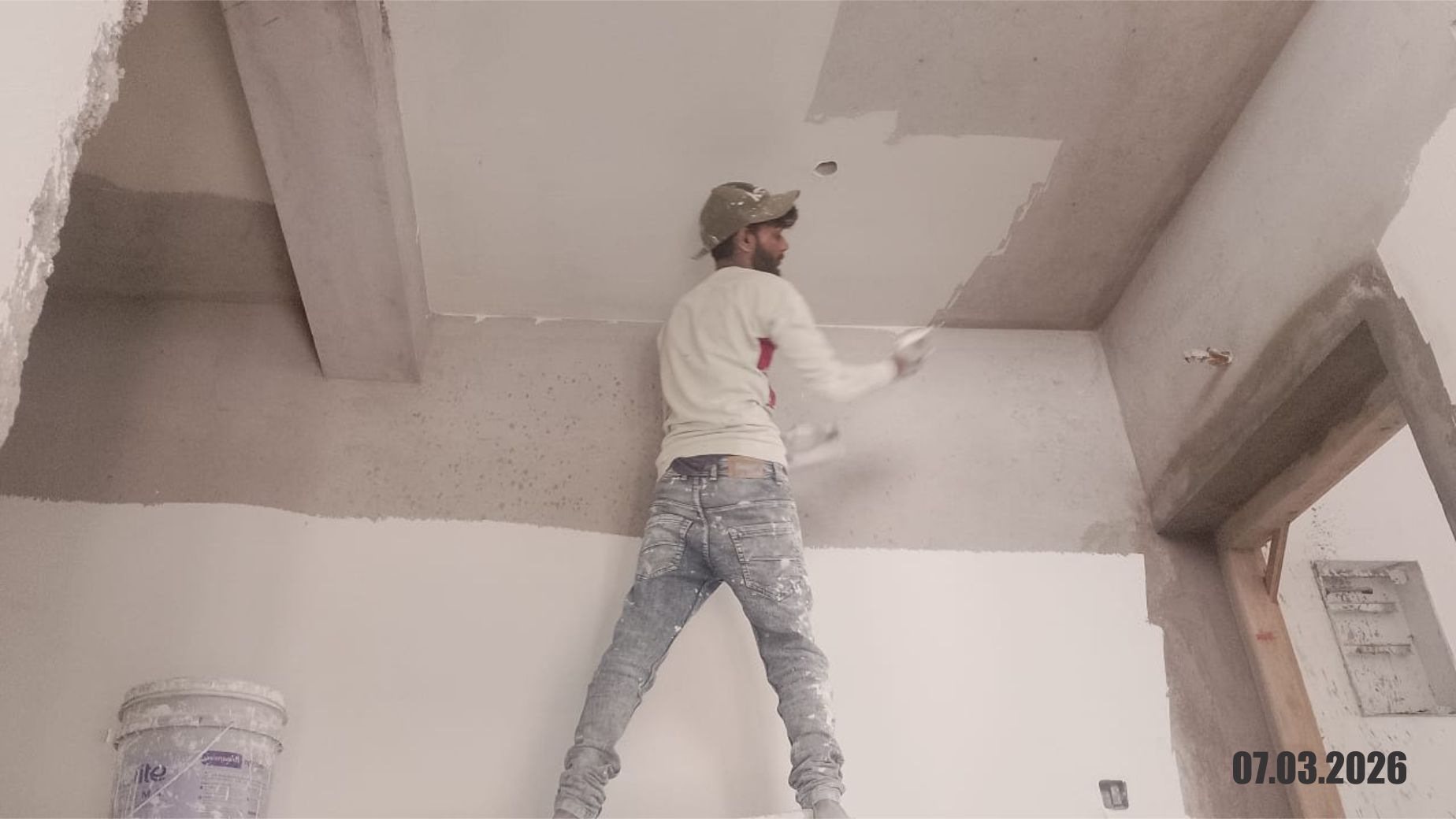

Internal walls will be two coats of cement based Putty, and two coats of premium Emulsion with one coat of Primer of Asian/Equivalent. External surface will be Texture, Exterior primer and two coats of Apex grade emulsion of Asian/Equivalent.
WINDOWS:
UPVC sliding for kitchen and Open able for other windows with 5 mm plain glass and 12 mm Bright bar gills embedded in wall. French door will be sliding with toughened glass. UPVC Ventilators of size 2' x 2' with adjustable louver and exhaust fan will be provided for all toilets.
OHT AND UG SUMP:
4 ½” Outer brick wall and RCC inner wall with water proofing for OHT, and 12,000 liters RCC sump with water proofing for UG sump. Bore well up to the depth of water source will be provided.
LIFT: 6 Passenger Auto door lift with License will be provided by Emperor lift /Equivalent.
GENERATOR: Generator will be provided to support Lift, Common lights, Pumps and Light and fan points inside the flat.
PEST CONTROL:
Anti termite pest control treatment will be done at footing, around plinth beam, Brickwork and paving block laying stages.
COMMON AMENITIES:
• Access control
• Piped gas
• SS Staircase railing
• Seating arrangements in car park & terrace
• Party table with a wash basin at Terrace
• Rain water harvesting
• Separate servant room & toilet
• Granite for steps and landing in common staircase
• Landscaping
• Elegant elevation features.
