Firm's Viswas

We facilitate bringing

Your dream of Luxury living now becomes a reality!

Firm's Viswas

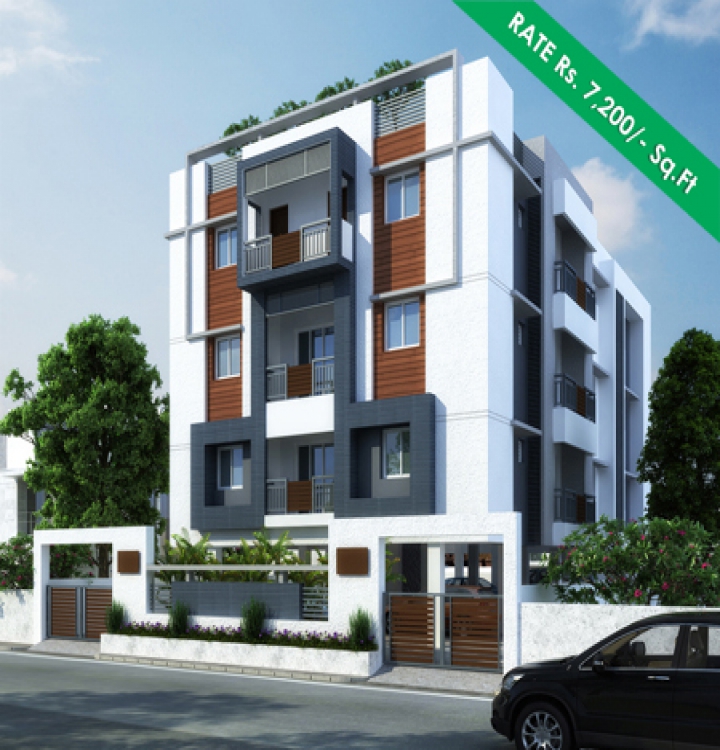

FIRM'S VISWAS is another land mark property including construction of Stilt plus three floors 6 Premium Residential two bed room apartments with modern amenities. The building will be constructed at Plot No.244- W, Old No.18, New No.16, 3rd Avenue, Indira Nagar, Adyar, Chennai- 600020.

STRUCTURE
R.C.C framed structure with Brick/ Fly ash bricks / cement blocks walls plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Royale Emulsion. Ceiling surfaces of the apartments will be given one coat of cement paint on the RCC surface and 12mm gypsum board false ceiling with galvanized iron section supports. Joints will be taped with touchup putty and finished with one coat of primer and two coats of White colour Premium Emulsion (Asian/Berger)

JOINERY

a. Main door: First Quality Burma Teak both frame and shutters (Panel door) Polished both sides with melamine spray.

b. Other doors: will be deep-moulded compressed wood fibre raised panel doors, strengthened with pre-selected kiln dried rails and stiles, with a grain effect etched in the panel with first quality teak frames, both polished with melamine spray. All door frames will be teak frames. Toilet doors will be painted FRP doors.

c. Windows:All windows will be teak wood windows, polished from inside with plain glass panels and 12mm Bright Bar grills.

d. Ventilator:Toilet ventilators will be with aluminium adjustable louvers with inbuilt provision for exhaust fan.

FLOORING

Flooring for the Living/ Dining area alone will be laid with Granite @ Rs.200/Sft (light colour). The Master Bedroom floor alone will be done with

laminated wooden  flooring @ Rs.100/Sft. Vitrified tile flooring 24” x 24” (@Rs.60/- per s.ft) from Nitco/ Asian/Oreva/ Equivalent plain colours,

for the rest of the flat ( other bedrooms, kitchen, balconies and passages) with 4” high skirting.

KITCHEN

RCC slab with Black galaxy granite top (18 mm thickness) with  Nirali/ equivalent make Stainless Steel sink (36”x20”) and drain board. 10” x 14” or 12” x 18” or 12”x

16” (@Rs.50/Sft) plain colour glazed tiles of KAJARIA/ SOMANY/ SONARA to a height of 2’ above platform will be provided. Shelves with Black Granite slabs will be provided in the

Kitchen. RO plant with 10litres/hour output will be provided for individual flats in the kitchen.

TOILETS

Designer toilets with duo- coloured ceramic tiles and glazed tile dado upto 7 feet height for the walls. Tile sizes will be 12” x 18”/ 10” x 14”/ 12’ x 16” from KAJARIA/

SOMANY/ EQUIVALENT (@Rs.50/Sft and 10 motifs @Rs.200/motif per toilet). Plain ceramic antiskid tile flooring of size 12” x 12” (@Rs.40/Sft) from KAJARIA/ SOMANY/

SONARA/ EQUIVALENT will be provided. Parryware Cascade wall mounted NXT closet with exposed tank provided in all toilets with health faucets.

Taps and other fittings – MARC / Jaquar/ Equivalent make CP fittings. Each toilet shall be provided with one water closet, one wash basin, one divertor, One tipton and shower rose, one health faucet,

pillar cock & angle valve for wash basin and 20 mm concealed stop cock.

ELECTRICAL

Three phase electric supply connection with a separate Manual Three phase changeover switches inside each flat and wiring will be of copper fire retardant cables concealed in PVC conduits. MINIATURE CIRCUIT BREAKERS & RCCB (Residual Current Circuit Breaker) will be provided Switches will be Modular Type mounted on metal boxes from MK INDIA Blendz/ EQUIVALENT. Provision for Split A/C in all bedrooms and living room. TV and Telephone points will be provided in Living and all bedrooms.

CHEMICAL EARTHING

Done for the building by digging 3m deep bores inserted with hot dipped galvanized dual pipes, filled with high conductive and corrosion resistant crystalline mixture and backfill compound around the electrodes.

WATER SUPPLY

Corporation and borewell water supply in the kitchen, service and bathrooms.

LIFT

A SIXPassenger  AUTO DOOR  LIFTwill be provided from KONE or equivalent.

GENERATOR

15 KVA standby Generator from Ashok Leyland/ Kirloskar with alternator, sound proof enclosure, control panel, change over panel and earthing etc., will be provided to support lift, common area lights, Mono bloc and jet pumps. Provision for 1500VA inverter will be provided for each individual apartment to support 6 fans and 10 lights with battery backup for 2 ½ hrs.

VIDEO DOOR PHONE

For each individual apartment will be provided

SPECIAL WEATHERING

proof tiles  (Insulla) will be laid on the mother terrace to reduce the heat on the top floor.

SPECIAL AMENITIES

Special amenities as per individual requirement at extra cost.

Stilt Plan

https://www.firmfoundations.in/projects/floorplans/thumbnails/13878865054stilt_floor_plan.jpg

First Floor

https://www.firmfoundations.in/projects/floorplans/thumbnails/13878865342Typical_floor_plan.jpg

Plot No.244- W, Old No.18, New No.16,
3rd Avenue, Indira Nagar, Adyar,
Chennai- 600020.

https://www.firmfoundations.in/projects/location/thumbnails/13902801557Key_Plan.jpg
FLOOR FLAT AREA ( IN SQ. FEET) AVAILABILITY
First Floor Flat No.1 1190
First Floor Flat No.2 1190
Second Floor Flat No.1 1190
Second Floor Flat No.2 1190
Third Floor Flat No.1 1190
Third Floor Flat No.2 1190
PAYMENT SCHEDULE
At the time of BOOKING Land cost + Regis Charge + 20% of Construction cost
On completion of BASEMENT 15% of Construction cost + Corpus
On completion of GROUND FLOOR ROOF 10% of Construction cost
On completion of FIRST FLOOR ROOF 10% of Construction cost
On completion of SECOND FLOOR ROOF 10% of Construction cost
On completion of THIRD FLOOR ROOF 10% of Construction cost
On completion of BRICK WORK of your flat 10% of Construction cost
On completion of INTERNAL PLASTERING of your flat 7% of Construction cost
On completion of TILE LAYING of your flat 5% of Construction cost
On HANDING OVER POSSESSION 3% of Construction cost
